Hub industriel USB 3.2 Gen.1, 4 ports, aluminium, avec alimentation électrique

Hub industriel USB 3.2 Gen.1, 4 ports, aluminium, avec alimentation électrique

• Robust aluminium housing for industrial use: The durable housing provides reliable protection in harsh environments and enables long-term use in professional settings.

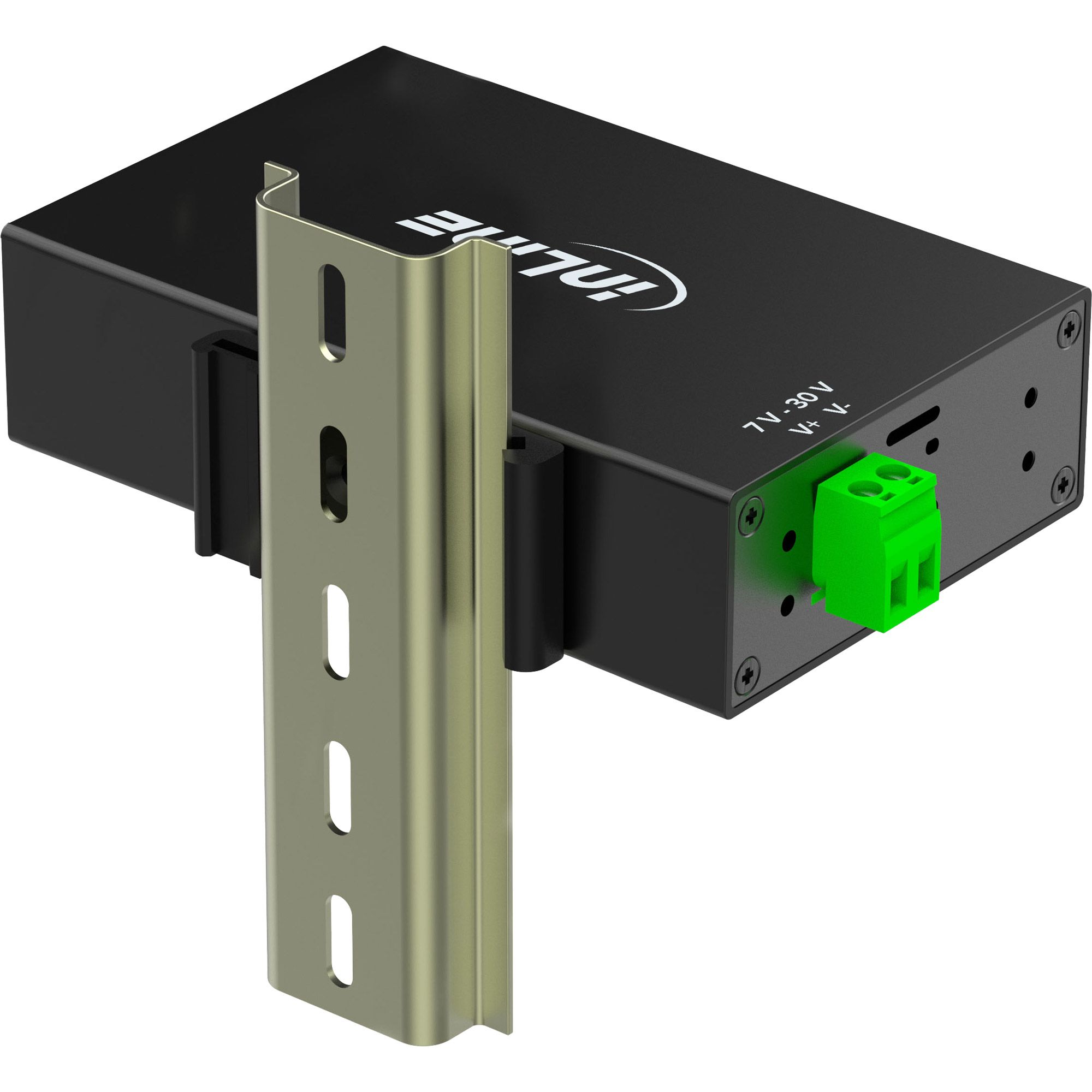

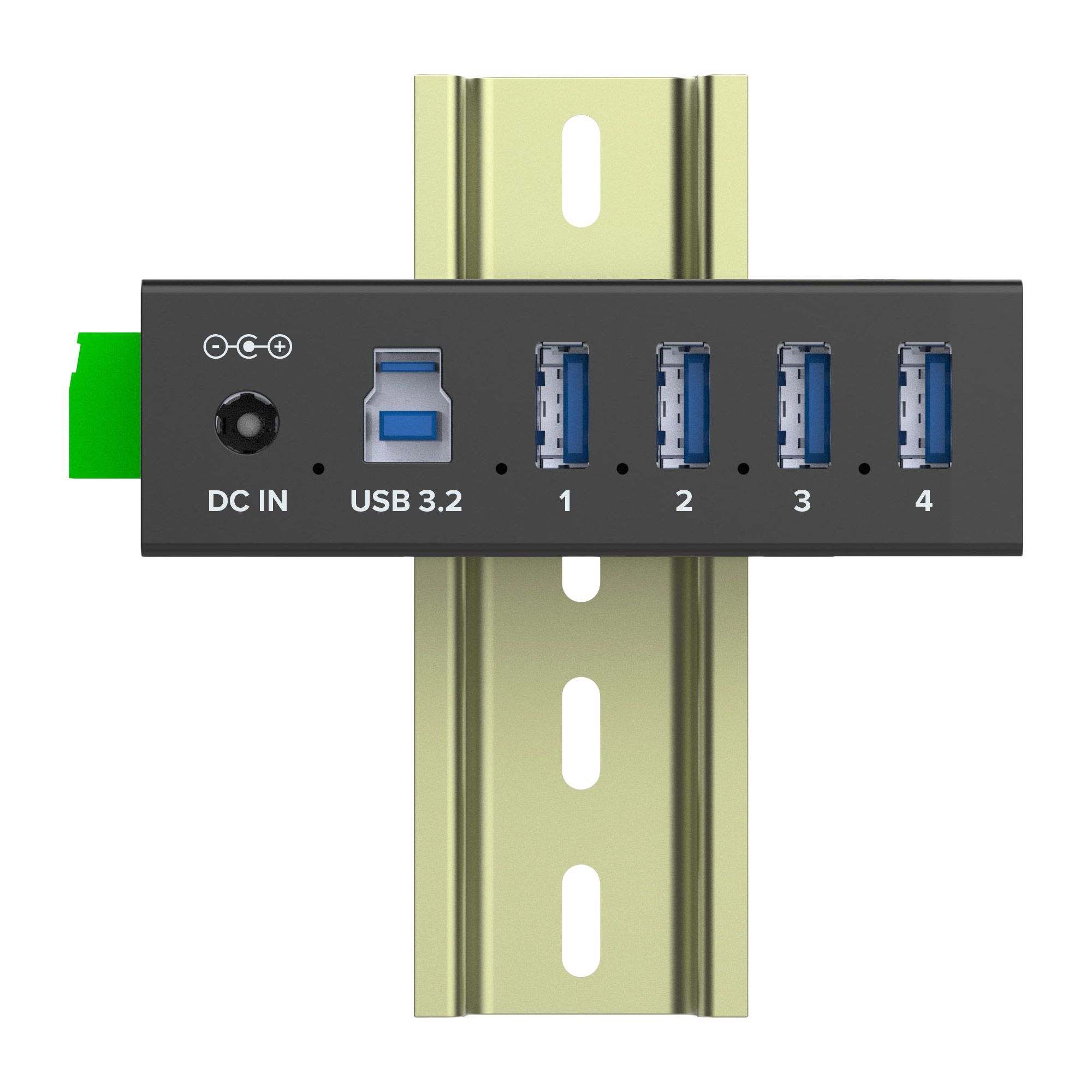

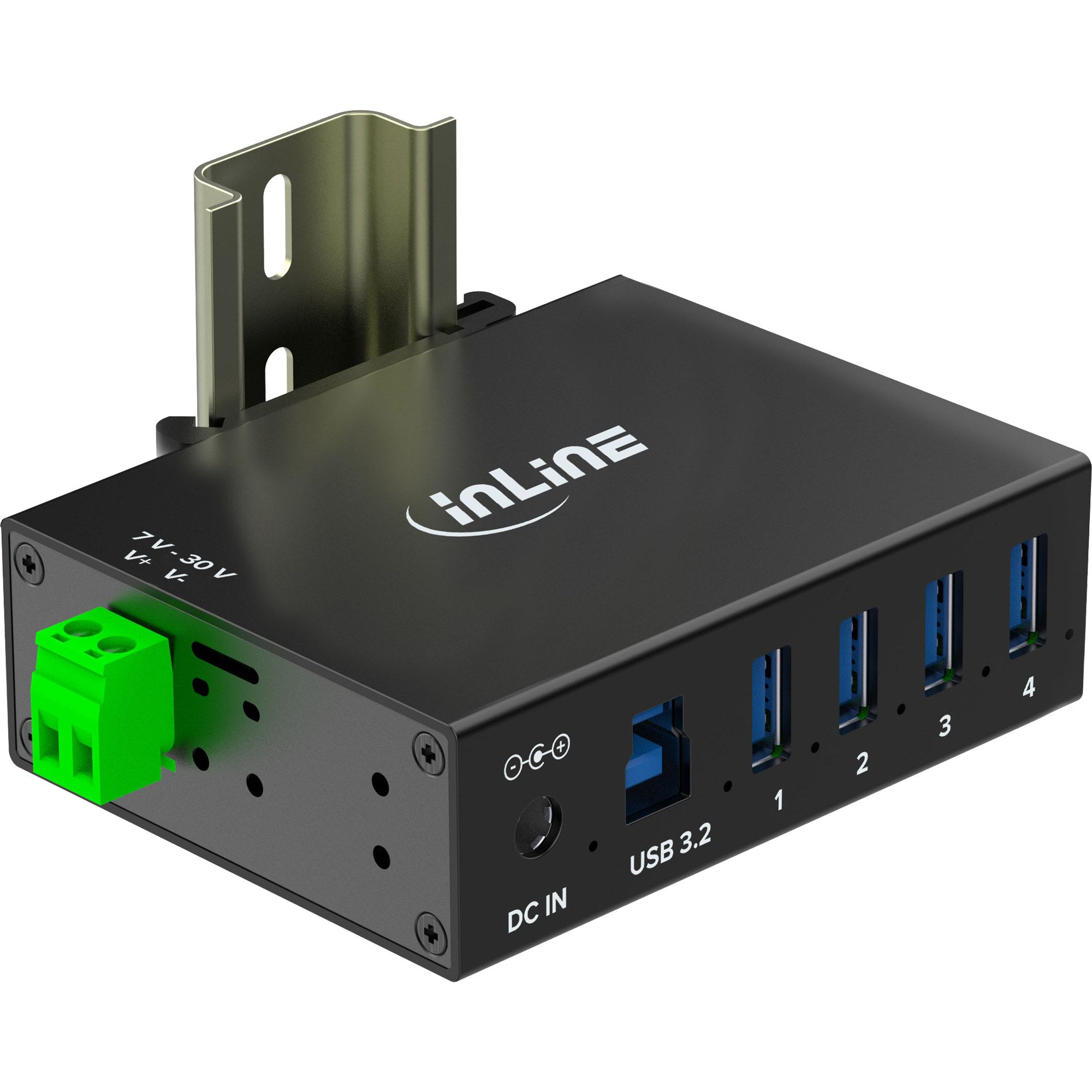

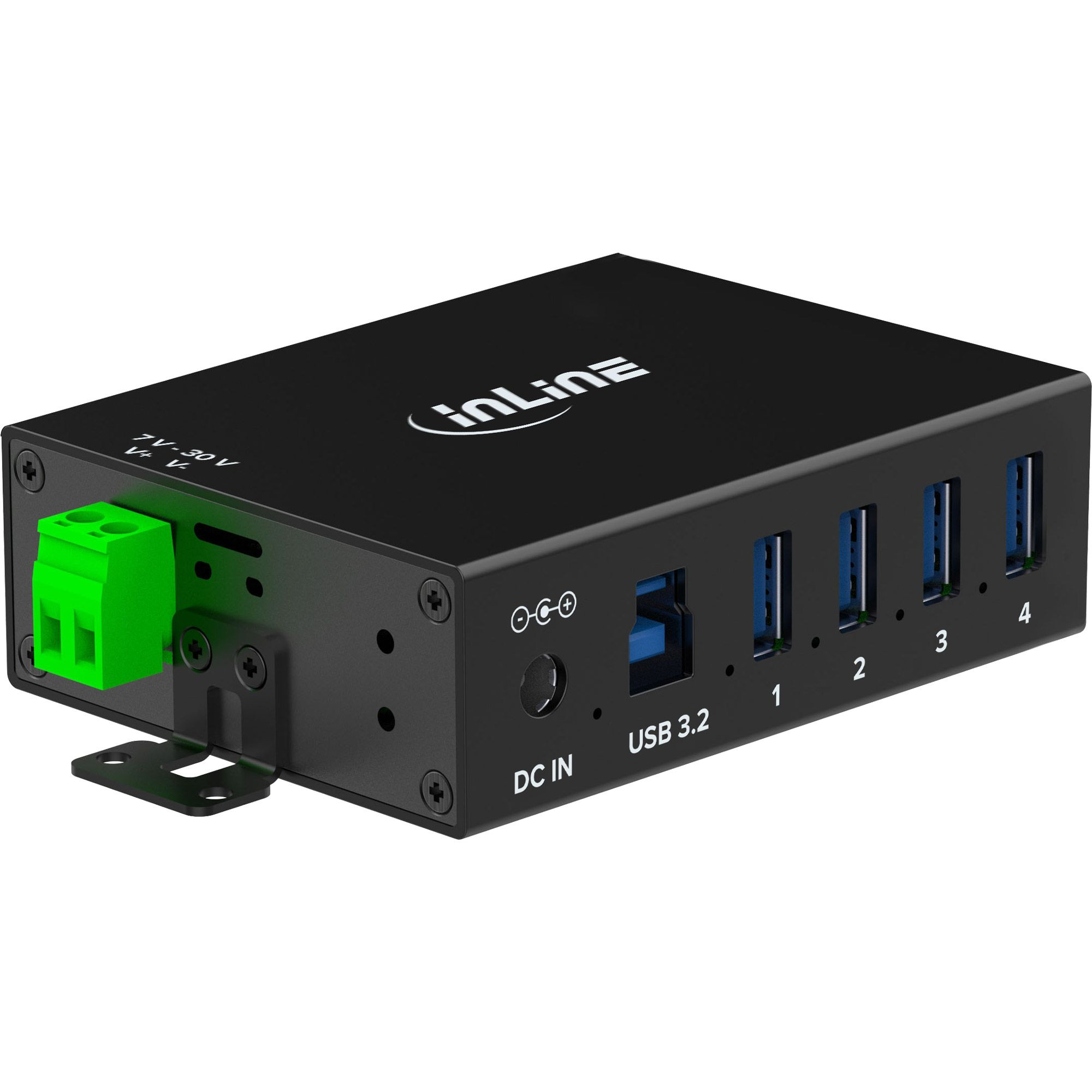

• DIN rail and wall mounting: Flexible mounting options ensure secure and space-saving integration in control cabinets and technical rooms.
• Powerful USB 3.2 Gen.1 ports: Four USB-A ports offer reliable data transfer at up to 5 Gb/s - ideal for industrial applications.
• Extended protection for maximum operational reliability: Integrated short-circuit, overvoltage and ESD protection ensures safe continuous operation.
• Flexible power supply: Optional power supply via power supply unit or terminal block - adapts perfectly to local conditions.

The InLine® USB 3.2 Gen.1 Industrial Hub is specially designed for professional use in demanding conditions. With four powerful USB-A 3.2 Gen.1 ports and a maximum transfer rate of 5 Gb/s, it is a reliable connection solution for industrial IT and control systems. The high-quality aluminium housing protects against mechanical stress and enables safe operation even at extreme ambient temperatures from -40°C to +85°C. Thanks to the flexible mounting options - DIN rail or wall bracket - the hub can be easily integrated into existing infrastructures.

Integrated protection against short circuits, overvoltage and electrostatic discharge ensures additional operational safety. Power is supplied either via a supplied external power supply unit or alternatively via a 2-pin terminal connection. This makes the hub particularly flexible in use - from control cabinets and machine controls to technical rooms in IT infrastructure.

Compatibility with Windows, MacOS and Linux, as well as easy plug-and-play commissioning, make the industrial hub a versatile interface solution for professional applications.

• Chipset: VL817S
• Inputs
• - 1x USB-B port for connection to host computer
• - 1x DC IN (5.5 x 2.5 mm)
• - 1x alternative 2-pin terminal connection
• Output
• - 4x USB-A 3.2 Gen.1 ports (5 Gb/s)
• - BC1.2 charging specification: Yes (max. 5 V / 2 A per port)
• Protective mechanisms:
• - Short circuit, overcurrent, overvoltage
• - ESD/antistatic protection: 350 W
• Housing: Aluminium, black
• Mounting: DIN rail or wall bracket
• LED display: Yes
• Plug & Play: No drivers required
• Standby power consumption: 0.07 W
• Operating temperature: -40 °C to +85 °C
• Storage temperature: -40 °C to +125 °C
• Humidity: 10-85% (non-condensing)
• Operating systems: Windows, MacOS, Linux
• Dimensions: 91 x 68 x 28 mm
• Weight: 131 g

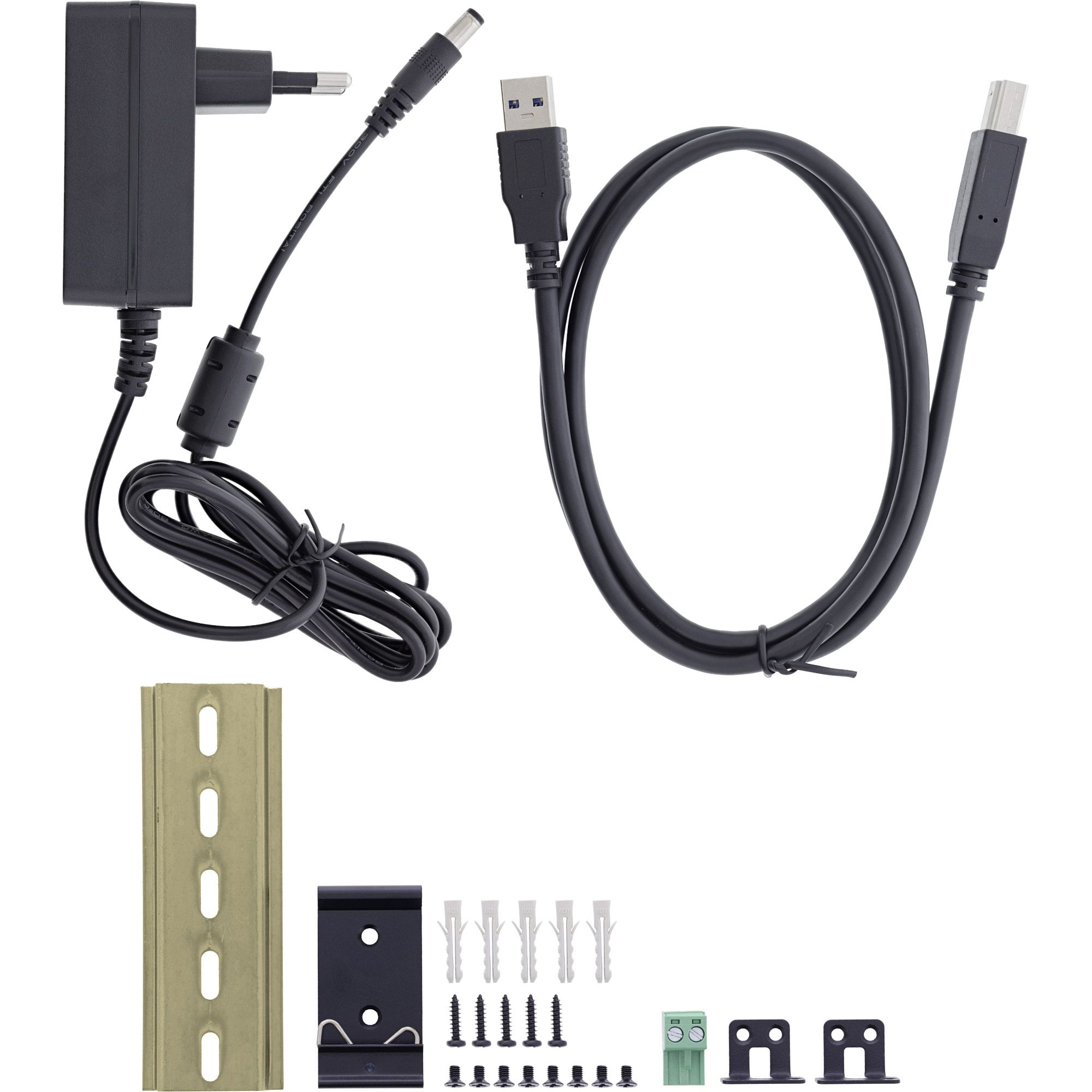

• Scope of delivery:
• - 1x InLine® USB 3.2 Gen.1 industrial hub, 4 ports, aluminium housing, with power supply
• - 1x USB-A to USB-B cable, 1 m
• - 1x mounting kit
• - 1x DIN rail 10 cm & clip
• - 1x terminal block
• - 1x external power supply 12 V / 2 A
• - 1x user manual in German/English
• External power supply (power supply unit):
• - Type: external plug-in power supply unit
• - Input voltage: 100-240 V AC, 50/60 Hz
• - Output voltage: 12.0 V DC
• - Output current: max. 2.0 A
• - Output power: 24.0 W
• - Average efficiency in operation: 87.45%
• - Efficiency at low load (10%): 84.07%
• - Power consumption at zero load: 0.07 W
